LLK Led Lenses KIT

Develop your optical lens system by yourself

IODA produces a set of lenses for LED lighting, called LLK (Led Lenses Kit), that allows you to test and evaluate the variation of the opening angle of the light emitted by one or more lenses at different distances.

Often we are asked to produce optical systems to manage the light emitted by a LED or a COB, since the market cannot offer the exact solution for the specific application.

Each lens of the LLK kit is provided with an outer ring that allow you to adjust the distance of the lens from the base and the superimposition of more lenses.

The lenses included in the kit LLK are produced by IODA srl for the lighting market and may also be requested individually with or without the outer support ring (ring kit).

Convention is to provide values of angular opening with the axis perpendicular to the plane in which the base of the LED, so a value of +/- 45 ° means that the angle of the cone of light emitted by the optical system has the absolute angle 90 °.

D55-AD20

D55-AD20

D55-AD30

D55-AD30

D55-AD45

D55-AD45

Sph -5.50

Sph -5.50

Fresnel F25

Fresnel F25

Fresnel F15

Fresnel F15

F40 Holder Led Lens

F40 Holder Led Lens

C6-B diffuser Led Lens

C6-B diffuser Led Lens

Nova Sph +6.00

Nova Sph +6.00

LLK_List

Reference Table for the empirical determination of the opening angle.
Distance between the LED and the target 500mm

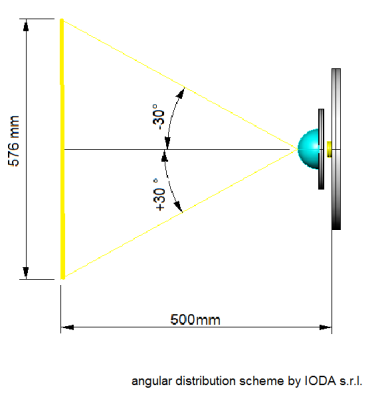

angular distribution scheme by IODA s.r.l.

angular distribution scheme by IODA s.r.l.

Diameter of the light (mm) . Angle Distribution (+/-) .
10 0,57
20 1,14
40 2,29
100 5,71
150 8,53
200 11,33
300 16,70
400 21,80
500 26,50
600 30,10
800 38,66
1000 45,00
1200 50,19
1400 54,46
1800 60,94
2200 65,55

.

Convention is to provide values of angular opening with the axis perpendicular to the plane in which the base of the LED, so a value of +/- 45 ° means that the angle of the cone of light emitted by the optical system has the absolute angle 90 °.
